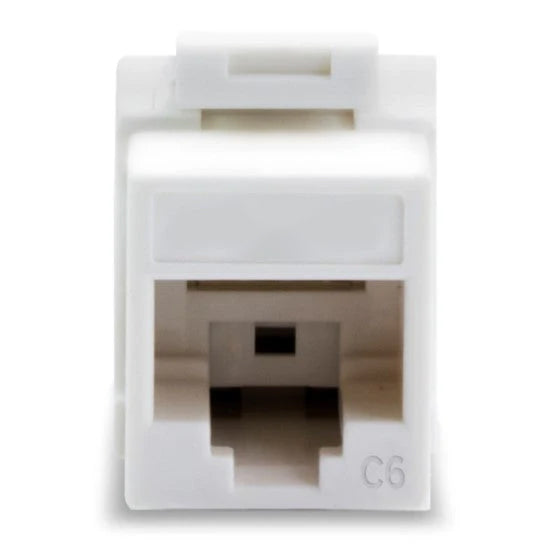

Universal Cat6, UTP, RJ45 Modular Keystone Jack - White - Pack of 10 - NIFFON

Universal Cat6, UTP, RJ45 Modular Keystone Jack - White - Pack of 10 - NIFFON

Rs. 2,647.35
Rs. 2,647.35
Sold out
Tax included. Shipping calculated at checkout.
 These modular keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a 110 or krone tool. Clear wire retaining caps are supplied and...

Type: Data Jacks
Vendor: NIFFON
VPN: N-UC6KSJ-WH-10
UPC: 8904492109895
View full product details


These modular keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a 110 or krone tool. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief.


PRODUCT FEATURE

• Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568A/B Series Connecting Hardware Standards

• Backwards compatible with Category 5e products

• Flexible locking tabs

• UL 94V-O rated

• Accepts solid 22-24 AWG diameter conductors

• Universal colour-coding for 568A and 568B Standards

• Lead frame technology eliminates the possibility of PCB failures


PRODUCT SPECIFICATION

ELECTRICAL CHARACTERISTICS

Dielectric Strength: 750V RMS at 60Hz for 1 minute
Current Rating: 61.5 A maximum
Insulation Resistance: 1000MΩ minimum@500VDC
Contact Resistance: 1MΩ per contact
Temperature Range: Storage: -40˚C to +85˚C
                                      Operation: 0˚C to 70˚C

MECHANICAL CHARACTERISTICS

Housing Material: PC
Insert Material: Fame Retardancy PBT
PCB Material: FR-4 T=1.6mm
Contact Material: Phosphor Bronze
                         Stamp pin T=0.30mm
Contact Material: Phosphor Bronze
                          T=0.50mm Tin plating
IDC Contact Material: 750 time min
RJ45 Jack Life: 200 time min
IDC Life: AWG 22-26
