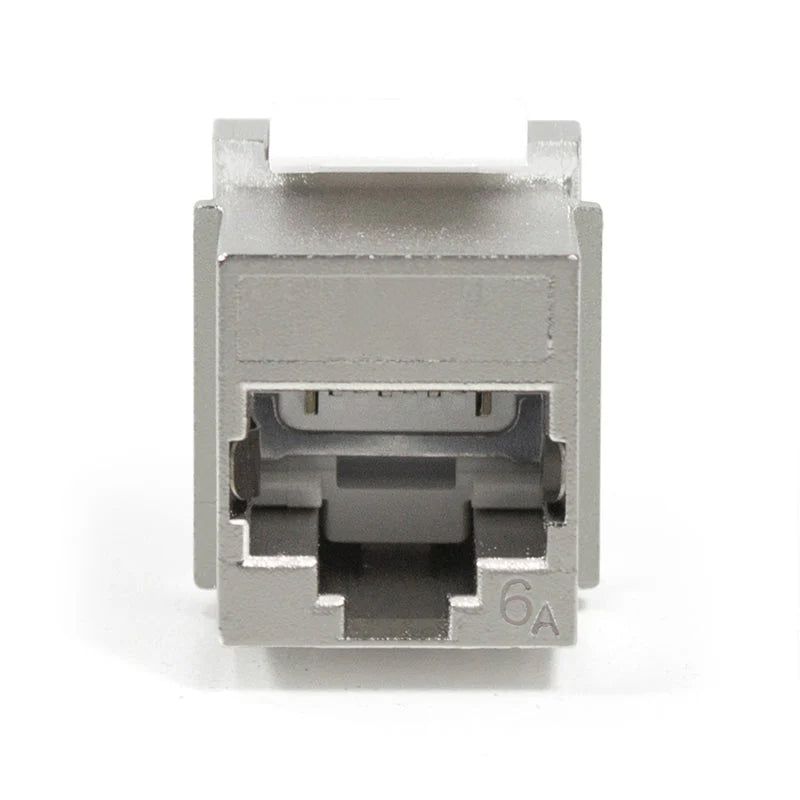

These modular shielded keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a standard 110 or Krone Tool. Designed to work best with NIFFON Cat6A shielded cables and standard Cat6A shielded cables. NIFFON Quick Tool, product code QTKS, is now available saving time and money when terminating multiple jacks. Wire retaining caps are supplied and can be used to provide additional cable strain relief.
• ISO/IEC 11801 compliant
• UL 94V-O rated
• Solid 22-24 AWG diameter conductors
• Universal colour-coding 568A/568B
• Lead frame technology eliminates PCB failures
• NIFFON Quick Tool (QTKS) compatible
TRANSMISSION PERFORMANCE |
|
Meet all requirements specified in connecting hardware requirement of |
|
Draft ISO/IEC 11801 amendment 2, Category 6A |
|
Draft ISO/IEC 60603 -7-51 |
|
ANSI/ TIA- 568 - C.2, Category 6A |
ELECTRICAL |
|
|
Electrical Insulation Resistance |
500 MO min. @ 100V d.c |
|
Dielectric Withstanding Voltage |
1000V d.c. or a.c. Peak Contact to Contact @ 60Hz for 1 minute |
MECHANICAL |
|
|
Insertion / Extraction Life |
750 Cycles Minimum IDC Wire Gauge : 22 ~ 24 AWG |
PHYSICAL |
|
|
Housing |
Zinc-alloy fully shielded |
|
Spring Wire |
Phosphor Bronze Alloy Plated With 50 micro-inch of Gold |
|
IDC |
Phosphor Bronze Alloy With 100 micro-inch 100% Sn Alloy |
(10) RJ45 Shielded Keystone Jacks
(10) Wire Cap
(10) Wire Ties
NIFFON products are manufactured at the highest standards using highest quality materials at an affordable price. This NIFFON product comes with a 2
years warranty standalone or a 25 years warranty as part of a certified structured cabling project. Subject to NIFFON Terms and Conditions*
