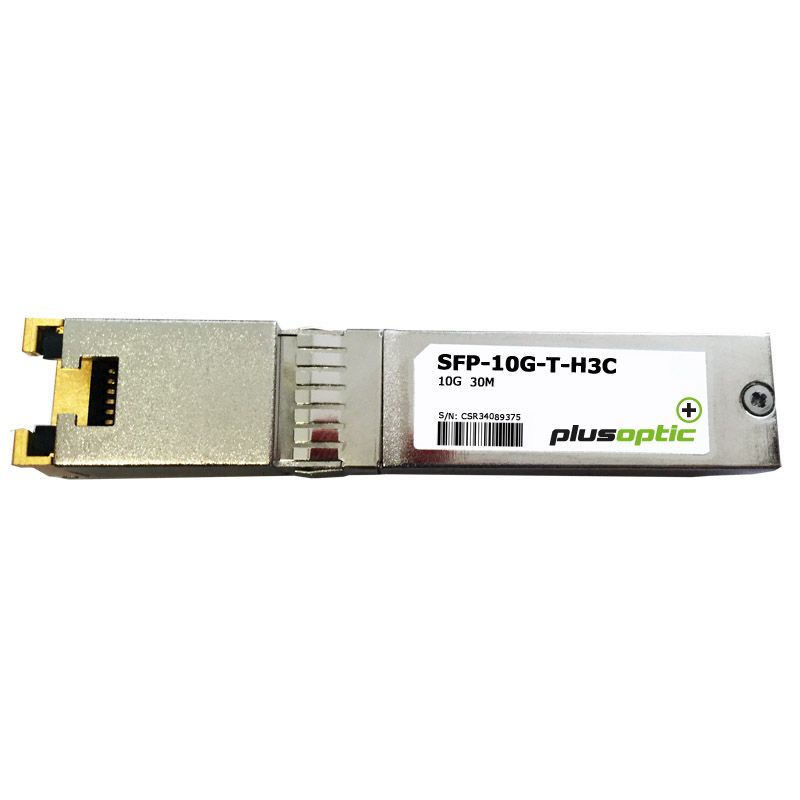

This 10G copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over CAT6A/7 cable. This is the first SFP+ transceiver that offers 10Gb/s communication over this type of media.

• Supports Links up to 30m using CAT6A/7 Cable
• SFF-8431 and SFF-8432 MSA Compliant
• IEEE 802.3az Compliant
• Low Power Consumption (2.5W MAX @ 30m)
• Fast Retrain EMI Cancellation Algorithm
• Low EMI Emissions
• I2C 2-Wire Interface for Serial ID and PHY Register Access
• Auto-negotiates with other 10GBase-T PHYs
• Supports 100/1000Base-T using CAT5E cable or better
• MDI/MDIX Crossover
• Multiple Loopback Modes for Testing and Troubleshooting
• Built-in Cable Monitoring and Link Diagnostic Features
• Robust Die Cast Housing
• Bail Latch Style ejector
• Unshielded and Shielded cable Support

• 1.25 Gigabit Ethernet over CAT5 cable
• Switch/Router to Switch/Router Link
• High speed I/O for file severs

3-years limited warranty
